It’s suitable for up to 35kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.
This type of product gathering with all the functions like:
line protection, controlling, measurement and monitoring of voltage and current signals.
This recloser controller support programmable software for protection setting and reclosing zone coordination.
It also supports with 8/12/16 channels sampling, can be customized choose additional sampling like conventional Voltage transformer or Voltage sensor.
It supports two ports communication.
| 出口标准版重合闸控制器（美标） IEEEC/IEC standard controller的概述 |
|

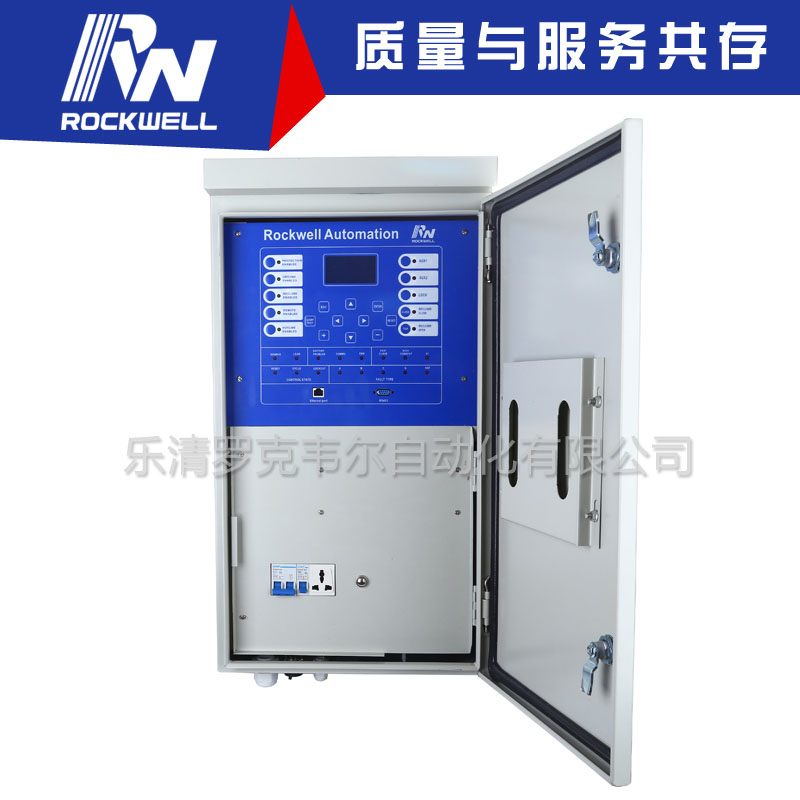

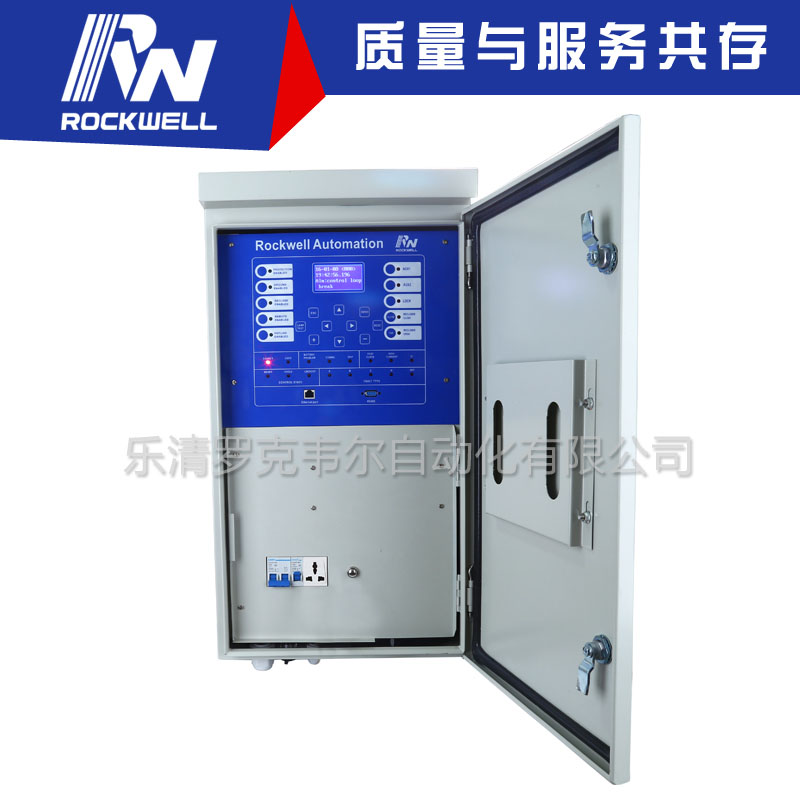

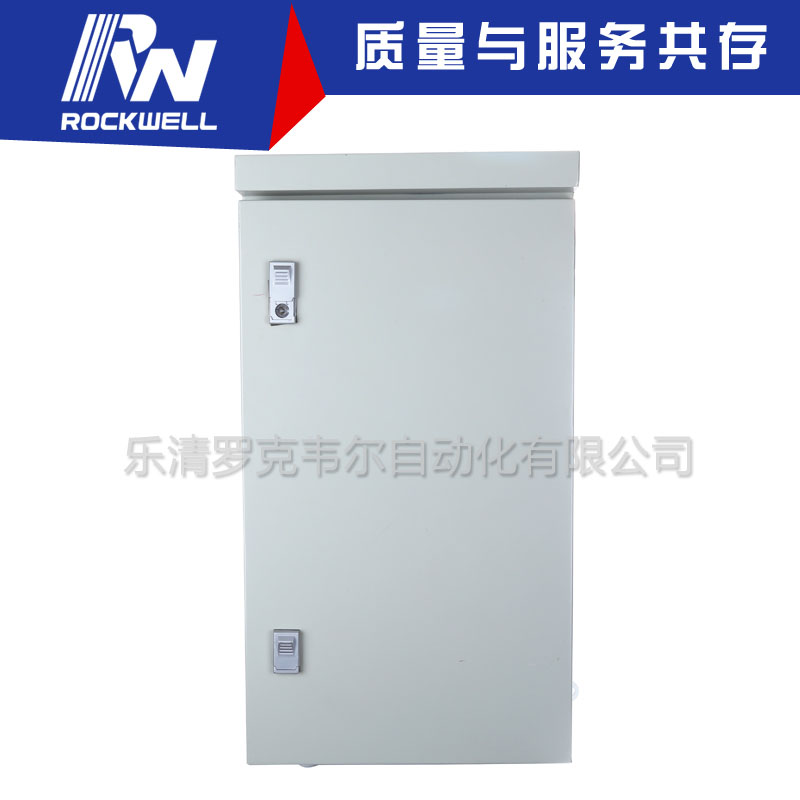

出口标准版重合闸控制器（美标）是中压架空线路电网的监控单元，与柱上开关配合实现线路状态自动监控、故障分析、判断记录，具备驱动开关保护线路设备安全，切断线路故障及自动恢复线路运行等功能。适用于35KV及以下户外开关设备，包括真空断路器，油断路器及气体断路器。
出口标准版重合闸控制器（美标）是集线路保护、控制、电压电流信号测量、监视于一体的综合自动化户外测控装置。具有处理单条架空线路所有电压电流信号于一体及开关远程操作的全部功能，它提供四次可编程的自动重合闸逻辑控制和顺序配合。本版本支持多路采样通道（可以根据需求提供），可以根据需求选择电压互感器采样或者电压传感器采样。同时支持两路通讯，满足大多数用户的需要。 This ROCKWELL IEEEC/IEC -standard type controller which is used for medium voltage overhead line monitoring and controlling, which can be equipped with pole mounted switchgear achieve of automatic monitoring, fault analysis and event records, and drive switch to isolate off line fault, recovery gird safety running. It’s suitable for up to 35kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers. This type of product gathering with all the functions like: line protection, controlling, measurement and monitoring of voltage and current signals. This recloser controller support programmable software for protection setting and reclosing zone coordination. It also supports with 8/12/16 channels sampling, can be customized choose additional sampling like conventional Voltage transformer or Voltage sensor. It supports two ports communication. |
| 出口标准版重合闸控制器（美标） IEEEC/IEC standard controller的功能 |
|
1、具有速断、限时速断、定时限过流的三段式保护功能，同时每段有低压闭锁、复压闭锁和方向过流保护模式可供选择，而且具备反时限过流保护； 2、具有手合加速段保护功能，断路器合于故障加速跳闸，并闭锁合闸； 3、具有0~4次自动重合闸功能，满足“分-t1-合分-t2-合分-t3-合分-t4-合分-闭锁”工作特性，具有重合闸后加速功能，重合次数、延时可自由设定。另外，相间过流重合闸和零序过流重合闸是分开的； 4、具有零序保护功能和灵敏接地保护功能，同时带有方向过流保护； 5、具有涌流抑制保护功能； 6、具有过负荷保护功能； 7、热线保护功能； 8、具有两段负序过流保护功能； 9、具有过压分闸保护功能； 10、具有低压分闸保护功能； 11、具有零序过压分闸保护功能； 12、具有高温保护功能； （根据用户需求添加） 13、具有重瓦斯保护功能； （根据用户需求添加） 14、其它功能：事件记录、实时时钟、实时状态查询； 15、可选功能：电压传感器功能、远方操作功能、双PT功能、CT防开路功能、智能手机控制（蓝牙）、GPRS无线通讯、手机短信（GSM）。 Detail Functions: 1、with Instantaneous over current protection, definite time over current protection and over current protection protection, over current three-stage current protection, low voltage component block, composite voltage component block or direction component block is available for each section, pulse inverse time limit over current protection; 2、with Manual closed accelerating protection, the breaker will trip fast when it’s closed in fault, and it will trip and lockout close operation; 3、with 0 to 4 shots reclosing, “O-t1-CO-t2-CO-t3-CO-t4-CO-lockout” , Reclose accelerating protection, shots setting, delay time setting; independent phase over current reclosing and zero sequence over current reclosing; 4、with zero sequence over current protection, E/F, SEF, with directional protection model for selection ; 5、with cold load protection ; 6、with over load protection; 7、with hot-line-tag protection; 8、with two-stage negative sequence over current protection; 9、with over-voltage protection ; 10、with under-voltage protection ;（optional） 11、with residual voltage protection ; 12、with relay for additional transformer protection high temperature input; （optional/definable） 13、with relay for additional transformer protection heavy gas input ; （optional/definable） 14、Event record, Real-time sync, Real time checking, 15、Optional functions: Optional channel for voltage sensor, Remote operating, Double-PT, protection for CT circuit, intelligent phone control/blue booth, GPRS communication, Mobile-phone message/GSM. |
