Split DC EV charger

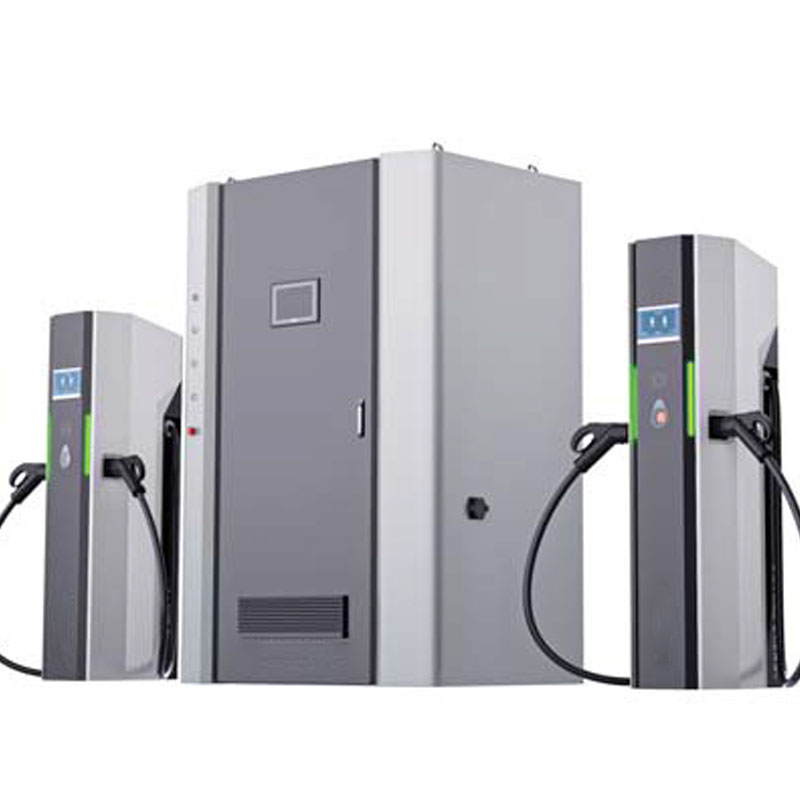

WZ12 Series Split DC EV charger

The rectifier cabinet can be configured with 12 single-gun charging terminals or 6 double-gun charging terminals, which can meet the charging needs of 12 vehicles at the same time. The charging terminal configuration is flexible and can be applied to various scenarios.
It is suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, public fast charging stations, etc. It can charge electric vehicles of various types and capacities, including passenger cars, buses, sanitation vehicles, heavy trucks, etc.

→ Download Catalog

Product Details
technology parameters

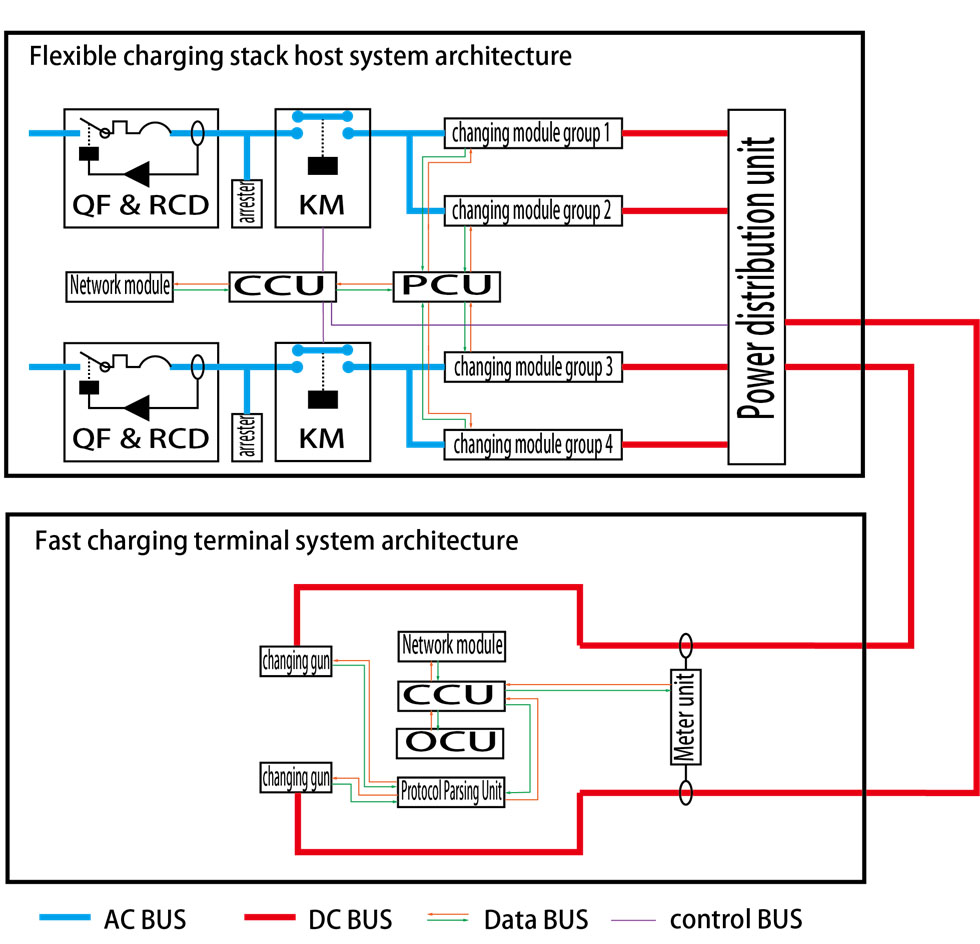

System structure

The WZ12 series is a split-type DC charging pile designed in accordance with the standards of State Grid. The standard version is 320kW as per the national standard.
Flexible power combination scheme: The power of the rectifier host is selectable from 320 to 480kW, with a single node output power of 40kW. Multiple nodes can be combined for use to increase the output power.
2. The dual-gun charging terminal is compact and lightweight, yet it can carry a current of 250A per gun. The charging power can reach 250KW per gun, and the charging rate is 2C-2.5C.
3. High compatibility: Supports five mainstream interfaces (GBT/CCS1 / CCS2 / CHAdeMO/NACS), and the communication protocol is the current mainstream OCPP1.6 / OCPP2.0. It has been adapted to multiple charging station management platforms (YKC, TELD, etc.), and is compatible with both lithium iron phosphate batteries and lithium batteries.
4. Customization: You can contact the customer manager to customize the color combination and advertising paint work you like.

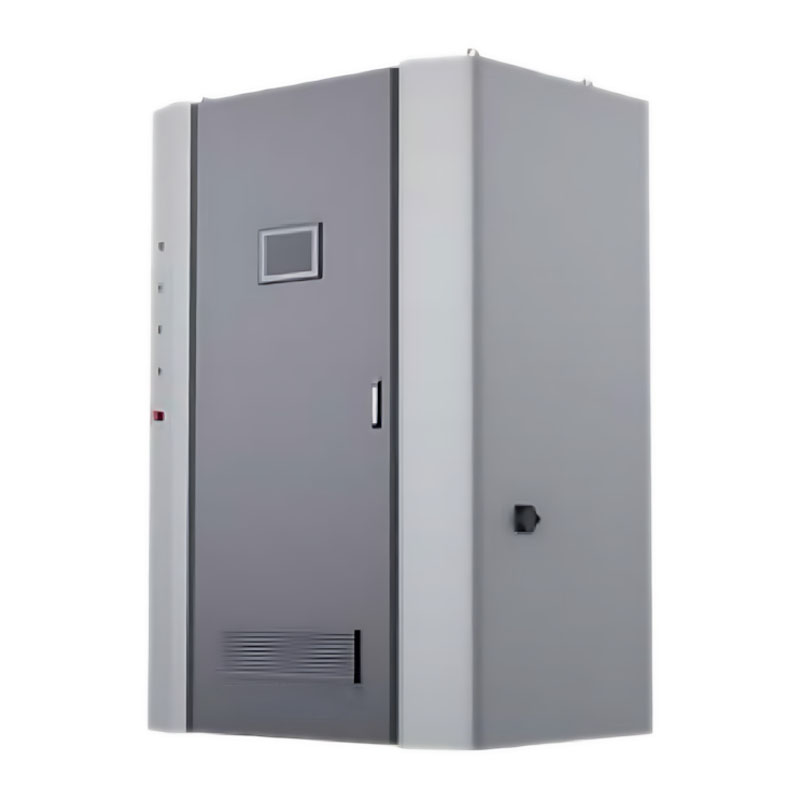

Mian cabinet

Product Number	WZ12Z-320kW	WZ12Z-480kW
Input	275-490VAC (3P+N+PE) \|\| 50/60Hz
Output Voltage	200 - 1000VDC
Output current	0-1050A	0-1600A
Max power	320KW	480kW
Parallel Charge Mode (Optional)	40 kW per Port
Load ports number	8	12
Operating temperature	-30°C to 55°C
Altitude	< 2000m
Working \|\| Storage Humidity	≤ 95% RH (Non-condensing)
Ingress Protection	IP54
Power Electronics Cooling	Air Cooled
Insulation (input - output)	＞2.5kV
Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
Electrical Safety: GFCI	RCD 30 mA Type A
Electrical Safety: Surge Protection	20 kA
Protection	Over voltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.

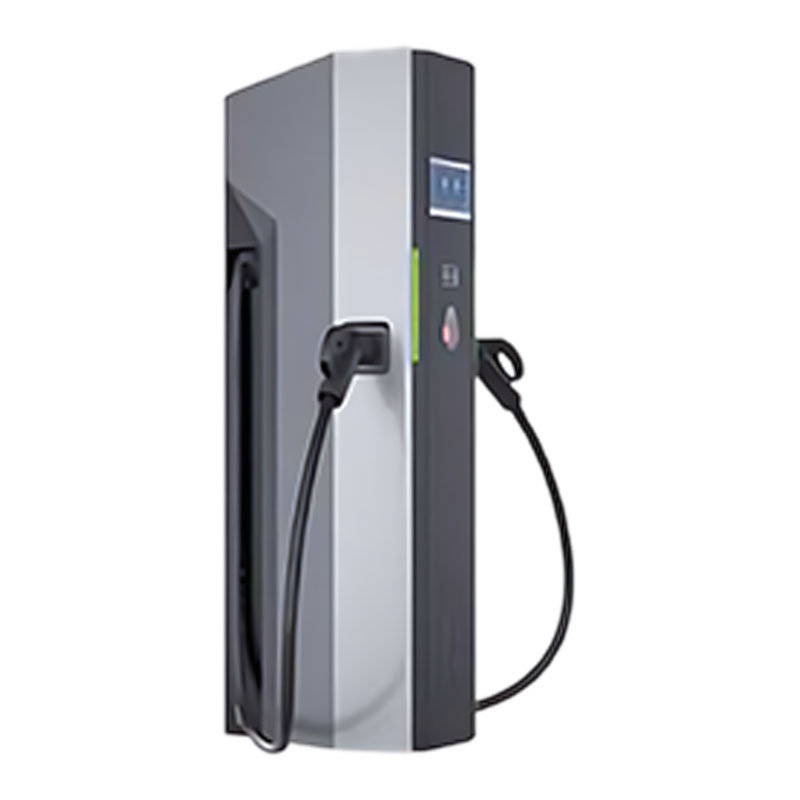

Changing terminal

Product Number	WZ12T-250kW
Input	200 - 1000VDC
Output Voltage	200 - 1000VDC
Output current	0-250A
Max power	250KW
Connector	GBT/CCS2/CHAdeMO/CCS1/NACS(Tesla)
Connector number	2
Charging rate	2C
Operating temperature	-30°C to 55°C
Altitude	< 2000m
Working \|\| Storage Humidity	≤ 95% RH (Non-condensing)
Ingress Protection	IP54
Power Electronics Cooling	Liquid-cooling
Insulation (input - output)	＞2.5kV
Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
Electrical Safety: GFCI	RCD 30 mA Type A
Electrical Safety: Surge Protection	20 kA
Protection	Over voltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.
